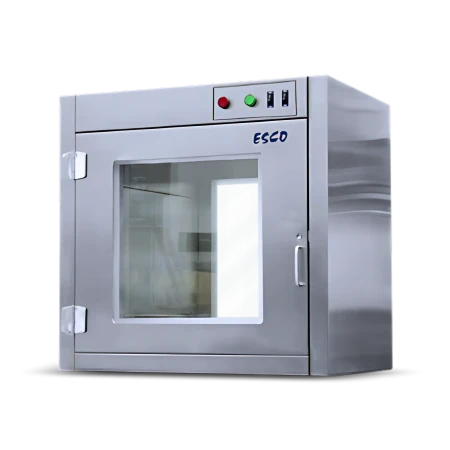

Static Pass Box (SPB)
This allows the aseptic transfer of
materials into and out of cleanroom areas. It lessens operator traffic inside
controlled facilities, thus decreasing the risk for cross-contamination of
processes and final products.
Key Benefits:
Electromagnetic interlocking doors with round magnets for double lock
Easy-to-clean full SS interior and exterior with coved corners at its base
Identifiable red/green indicator lights
Double layered tempered glass
Equipped with validated electromagnetic interlocking doors that prevent both doors from being opened at the same time.
All Esco products are manufactured for the most demanding cleanroom applications.
All components are designed for maximum chemical resistance and enhanced durability for long service life.
It is full stainless steel 304 construction with coved corners at its base for easy cleaning.
Durable transparent tempered glass doors provide clear visibility into the interior.
Convenient operation by identifiable red/green indicator lights to signal door status.
Controlling the ingress of particulate contamination into cleanrooms and other controlled environments is paramount in order to maintain the integrity of products and processes; personnel traffic is the most important factor which must be controlled.
Esco Pass Boxes and Transfer Hatches are cost effective solution as they allow materials to be transferred into controlled environments without actual personnel movement.
They may also be used to protect the external environment from egress of contamination, for example, in biological safety laboratory applications.
|
Standard sizes |
Internal Dimensions (Width x Depth x Height) |
External Dimensions (Width x Depth x Height) |
|
SPB-S606060 |
600 x 600 x 600 mm (23.6" x 23.6" x
23.6") |
780 x 680 x 870 mm (30.7" x 26.8" x 34.3") |
|
SPB-S606075 |
600 x 600 x 750 mm (23.6" x 23.6" x 29.5") |
780 x 680 x 1020 mm (30.7" x 26.8" x 40.2") |
|
SPB-S616161 |
610 x 610 x 610 mm (24.0" x 24.0" x 24.0") |
790 x 690 x 880 mm (31.1" x 27.2" x 34.6") |
|
SPB-S757575 |
750 x 750 x 750 mm (29.5" x 29.5" x 29.5") |
930 x 830 x 1020 mm (36.6" x 32.7" x 40.2") |
|
SPB-S100100100 |
1000 x 1000 x 1000 mm (39.4" x 39.4" x 39.4") |
1180 x 1080 x 1270 mm (45.3" x 42.5" x 50.0") |
Flange for sealing the gap between the pass box and the cleanroom wall, when the cleanroom wall can support the weight of the pass box (Set of 2 removable flanges).
Support stand (for cleanrooms with thin wall partitions, which cannot support the weight of the pass box) to mount the pass box to the floor (Specify mounting height when ordering).
Optional UV and LED lamps must be factory fitted (Specify when ordering).
Upgrade to Sentinel microprocessor controller.
Upgrade material of construction to SS316L for better corrosion resistance and long-term durability in demanding applications.
