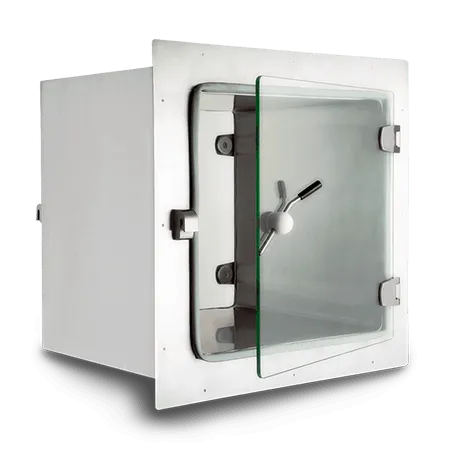

Infinity® Cleanroom Transfer Hatches
This allows the aseptic transfer of materials into and out of cleanroom areas. It lessens operator traffic inside controlled facilities, thus, decreasing the risk for cross-contamination of processes and final products.
Key Benefits:
Reliable Mechanical Interlock
Easy-to-clean full pharmaceutical grade SS interior and exterior with coved corners
10 mm tempered glass
Mechanical interlock is reliable, maintenance-free, fail safe and maintains cleanroom integrity by preventing both doors from being opened at the same time
Manufactured for the most demanding controlled environment applications
All components are designed for maximum chemical resistance and enhanced durability for a long service life
The main body of the transfer hatch is constructed of pharmaceutical-grade stainless steel 304
The internal side walls of the transfer hatch are constructed from a single piece of stainless steel, with coved corners for easy cleaning
-
Transparent 10mm (0.3") tempered glass doors provide visibility into the interior
Frameless construction is easy to clean with no joints for contaminants to accumulate
Durable rubber gasketed door seals maintain cleanroom integrity and are easy to clean
Transfer Hatch hardware has been custom designed for reliable service, featuring large, durable hinges, and ergonomic handles
One stainless steel mounting flange is included.
Controlling the ingress of particulate contamination into cleanrooms and other controlled environments is paramount in order to maintain the integrity of products and processes; personnel traffic is the most important factor which must be controlled.
Esco Pass Boxes and Transfer Hatches are cost effective solutions as they allow materials to be transferred into controlled environments without actual personnel movement.
They may also be used to protect the external environment from egress of contamination, for example, in biological safety laboratory applications.
|
Available Models |
|||||
|
Model |
Internal Dimensions |
Construction |
Interlock |
Air Shower |
|
|
EPB-S616161 |
610 x 610 x 610 mm (24” x 24” x 24”) |
Full stainless steel 304 exterior and interior having coved corners, 10 mm tempered viewing glass and 1.5 mm + 2 mm flange |
Mechanical |
NA |
|
|
EPB-S454645 |
450 x 460 x 450 mm (17.7” x 18.1” x 17.7”) |
Full stainless steel 304 exterior and interior having coved corners, 10 mm tempered viewing glass and 1.5 mm + 2 mm flange |
Mechanical |
NA |
|
-
UV lamp (only available for EPB-S616161)
-
Support stand (for cleanrooms with thin wall partitions, which cannot support the weight of the pass box) to mount the pass box to the floor. Specify mounting height when ordering.
