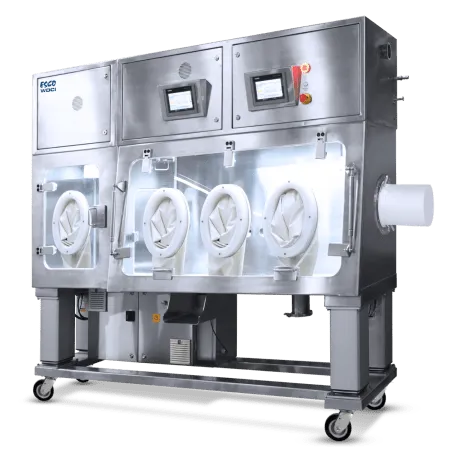

Weighing and Dispensing Containment Isolator (WDCI)
The Esco Weighing and Dispensing Containment Isolators (WDCI) are advanced containment systems providing controlled negative pressure environments to maximize personnel protection during weighing and dispensing of potent compounds.
Esco WDCIs’ provide standard configurable designs that are able to adapt to various weighing and dispensing quantities and accuracies.
Fully welded single-piece SS316L internal chambers with rounded coved corners
Pressure tested to ISO 14644-7
Inflatable antibacterial, USP Class VI compliant and food grade FDA approved gaskets providing both proactive and reactive sealing
Safe change glove system allowing change of gloves whilst maintaining a contained system
Integrated anti-vibration granite platform for analytical balance placement
Integrated automated pressure decay testing
Clean interior and exterior finishing
Safe change filters to allow in-process filter replacement
Lighting external to isolator chamber for ease of servicing and process chamber cleanliness
Integrated automated height adjustment providing 280mm of motion for ergonomic comfort
|
GENERAL SPECIFICATIONS |
WDCI - 2G |
WDCI - 3G |
WDCI - 4G |
WDCI - 5G |
|
|
Nominal Size Process Chamber |
1190 mm (46.9”) |
1590 mm (62.8”) |
1990 mm (78.3”) |
2390 mm (94.1”) |
|
|
External Dimensions |
Without Base Stand |
1200 x 800 x 1730 mm (47.2” x 31.4” x 68.1”) |
1600 x 800 x 1730 mm (62.9” x 31.4” x 68.1”) |
2000 x 800 x 1730 mm (78.7” x 31.4” x 68.1”) |
2400 x 800 x 1730 mm (94.4” x 31.4” x 68.1”) |
|
With Adjustable Base Stand (Min) |
1200 x 800 x 2080 mm (47.2” x 31.4” x 81.8”) |
1600 x 800 x 2080 mm (62.9” x 31.4” x 81.8”) |
2000 x 800 x 2080 mm (78.7” x 31.4” x 81.8”) |
2400 x 800 x 2080 mm (94.4” x 31.4” x 81.8”) |
|
|
With Adjustable Base Stand (Max) |
1200 x 800 x 2360 mm (47.2” x 31.4” x 92.9”) |
1600 x 800 x 2360 mm (62.9” x 31.4” x 92.9”) |
2000 x 800 x 2360 mm (78.7” x 31.4” x 92.9”) |
2400 x 800 x 2360 mm (94.4” x 31.4” x 92.9”) |
|
|
Internal Dimensions (W x D x H) |
1190 x 633 x 842 mm (46.9” x 24.9” x 33.1”) |
1590 x 633 x 842 mm (62.8” x 24.9” x 33.1”) |
1990 x 633 x 842 mm (78.3” x 24.9” x 33.1”) |
2390 x 633 x 842 mm (94.1” x 24.9” x 33.1”) |
|
|
Glove Port Height Min |
950 mm (37.4”) |
950 mm (37.4”) |
950 mm (37.4”) |
950 mm (37.4”) |
|
|
Glove Port Height Max |
1300 mm (51.1”) |
1300 mm (51.1”) |
1300 mm (51.1”) |
1300 mm (51.1”) |
|
|
Chamber Pressure |
Negative Pressure |
Negative Pressure |
Negative Pressure |
Negative Pressure |
|
|

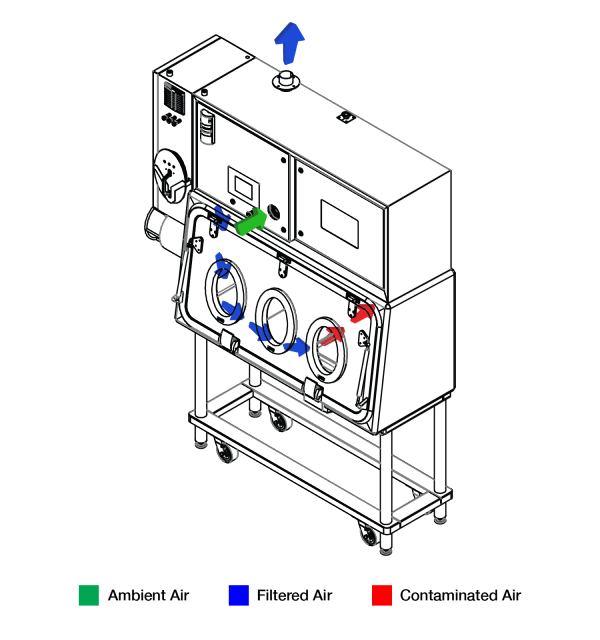

Airflow Type |
Turbulent Flow |
Turbulent Flow |
Turbulent Flow |
Turbulent Flow |
|
|
Airflow Volume - Maximum |
21 m3/h |
21 m3/h |
21 m3/h |
21 m3/h |
|
|
Airflow Volume - Maximum |
75 m3/h |
75 m3/h |
75 m3/h |
75 m3/h |
|
|
Filter Type - Inlet |
H14 Cartridge Filter with PVC Shroud |
H14 Cartridge Filter with PVC Shroud |
H14 Cartridge Filter with PVC Shroud |
H14 Cartridge Filter with PVC Shroud |
|
|
Filter Efficiency - Inlet - Safe Change |
99.999% |
99.999% |
99.999% |
99.999% |
|
|
Filter Efficiency - Exhaust - Safe Change |
H14 Push Push Filter with SS 316L Housing |
H14 Push Push Filter with SS 316L Housing |
H14 Push Push Filter with SS 316L Housing |
H14 Push Push Filter with SS 316L Housing |
|
|
Lighting Level |
≥ 650 lux (≥ 60 foot-candles) |
≥ 650 lux (≥ 603 foot-candles) |
≥ 650 lux (≥ 60 foot-candles) |
≥ 650 lux (≥ 60 foot-candles) |
|
|
Sound Level |
≤ 68 dBA |
≤ 68 dBA |
≤ 68 dBA |
≤ 68 dBA |
|
|
Isolator Construction |
Chamber |
SS 316L |
SS 316L |
SS 316L |
SS 316L |
|
Service Housing |
SS 304 |
SS 304 |
SS 304 |
SS 304 |
|
|
Support Frame |
SS 304 |
SS 304 |
SS 304 |
SS 304 |
|
|
Anti vibration weighing mount |
Black Granite for Analytical Weigh Scale |
✔ |
✔ |
✔ |
✔ |
|
Isolator Finish |
Chamber Internal |
≤ 0.4 Ra |
≤ 0.4 Ra |
≤ 0.4 Ra |
≤ 0.4 Ra |
|
Chamber External |
≤ 0.6 Ra |
≤ 0.6 Ra |
≤ 0.6 Ra |
≤ 0.6 Ra |
|
|
Service Housing External |
0.6 Ra |
0.6 Ra |
0.6 Ra |
0.6 Ra |
|
|
Support Frame |
1.0 Ra |
1.0 Ra |
1.0 Ra |
1.0 Ra |
|
|
Controls |
Color 6” HMI - Siemens - CE Marked |
✔ |
✔ |
✔ |
✔ |
|
Operator Specific Login sets Isolator Working |
✔ |
✔ |
✔ |
✔ |
|
|
Electrical Requirements |
110-120 V, AC, 50 Hz/60 Hz, 1Ø |
✔ |
✔ |
✔ |
✔ |
|
220-240 V, AC, 50 Hz/60 Hz, 1Ø |
✔ |
✔ |
✔ |
✔ |
|
|
480 V, AC, 50 Hz/60 Hz, 3Ø |
✔ |
✔ |
✔ |
✔ |
|
|
Compressed Air requirements |
6 Barg Pressure at 5Itr/sec |
✔ |
✔ |
✔ |
✔ |
|
Exhaust Duct Requirements (By Client) - Thimble Connection Required |
101.6 mm (4”) |
101.6 mm (4”) |
101.6 mm (4”) |
101.6 mm (4”) |
|
Built-in options
System comes with optional inert environment software
Fully welded or gasket sealed Rapid Transfer Port (RTP) adaptor is included allowing future expansion or reduction of the pass-through diameter
System comes with built-in wash-in-place (WIP) and clean-in-place (CIP) connections for future upgrade (or additional purge gun)
Built-in 4” connection for future split butterfly valves or other charging systems at base
Single port glove leak testers
-
Weighing balance with external surface mounted display and tare
With black granite anti-vibration weighing platforms
