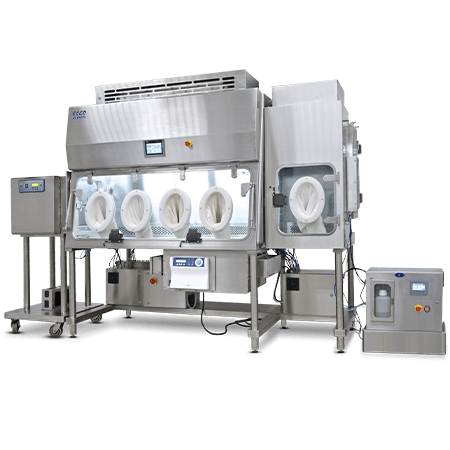

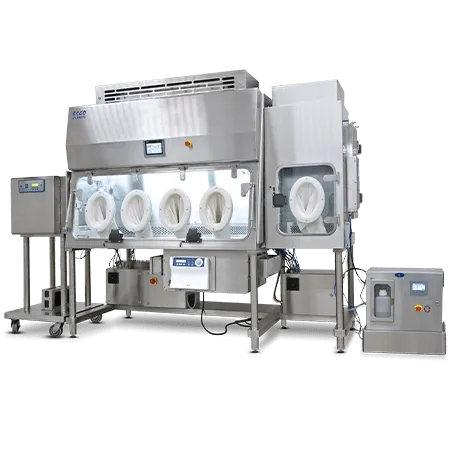

Advanced Processing Platform Isolator (APPI)
The Advanced Processing Platform Isolator (APPI) is used as a barrier to provide a biologically free environment for aseptic processes and other related activities requiring a sterile environment. It eliminates the need to use a high degree of Personal Protective Equipment within a cleanroom facility.
Applications:
Pharmacy Compounding (Chemotherapy/TPN)
Small Batch Sterility Testing
Small-scale Potent Material Handling
Cell Processing
Aseptic Processing
Research and Development
Integrated CO2 Incubator for scientific research to grow and maintain
Integrated centrifuge for research and to purify cells, subcellular organelles, viruses proteins, and nucleic acids
Automatic pressure decay test
Pass-through chambers
Automatic H2O2 Bio-decontamination
Integrated non-viable particle counter air sampling
Integrated drain with sloped chamber base to single drain point
Integrated panel printer
External or internal data logging
Alarm system
Touch-panel interface
Air is drawn from the pre-filter located at the ceiling of the isolator. The pre-filter traps large size particles.
Air from the top inlet is pulled by the supply blower, which creates positive pressure on the work zone that creates downflow.
The downflow filter creates a full unidirectional airflow and particle-free ISO Class 5 environment inside the isolator to protect the work material inside the main chamber.
Air from the work zone is quickly purged by the exhaust blowers to keep the area clean.
|
Description |
Detail |
Specifications |
|
Equipment Model Number |
APPI-4G |
|
|
Isolator External Dimensions (L x W x H) |
3480 x 1640 x 1655 mm |
|
|
External Dimensions (with optional base stand) |
3480 x 1640 x 2565 mm |
|
|
Internal Work Dimensions (L x D x H) |
1960 x 710 x 830 mm |
|
|
Usable Work Zone |
1960 x 710 x 830 mm |
|
|
Initial Airflow Velocity |
0.45 m/s |
|
|
Air Volume |
1.06 m3 |
|
|
Number of Glove Ports |
4 for Process Chamber, 1 for Pass-through Chamber |
|
|
Sound Level |
≤ 70 dBa |
|
|
Light Intensity |
≥ 500 Lux |
|
|
Electrical Rating |
230 VAC / 32 A / 1P/50 Hz |
|
|
HEPA Filter Typical Efficiency |
>99.999% for particle size at 0.3 microns |
|
|
Filter Types |
Room Inlet |
Compact Filter, Class F6 |
|
Chamber Supply |
ULPA Filter, Class U15 |
|
|
Room Exhaust |
Compact Filter, Class H14 |
|
-
Armrest padding
-
Laboratory chair
-
Footrest
-
Centrifuge
-
CO2 incubator
-
Biodecontamination system
-
Hydraulic height-adjustable stand
