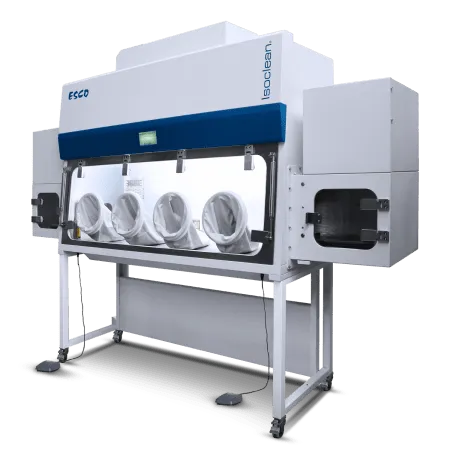

Isoclean® Healthcare Platform Isolator - Inflatable Seal Model (HPI-IS)

Esco Pharma’s Isoclean® Healthcare Platform Isolator – Inflatable Seal (HPI-IS) model guarantees the full isolation of a product or process inside an ISO Class 5 or Grade A environment, for high-quality final products.

Along with its inflatable seals and automated dampers, HPI-IS is equipped with an automated pressure hold testing (APHT) and mobile BioVap™ biodecontamination system.

This model can be factory-configured to operate in either a positive or negative pressure mode, with a recirculating or single pass/total exhaust airflow scheme.

Request for Quotation

Applications:

Aseptic and/or Potent Compounding
Pharmacy Compounding
Sterility Testing

Cell and Gene Therapy
Peptide Production
Biosafety Facility Level 3 or 4

Features

Pressure-tested as per ISO 10648-2:

selection from three (3) material of constructions:

Class 2 pressure-leak tight enclosure via auto pressure leak test (factory acceptance test)
Class 3 via automated pressure test as per ISO 10648-2 (prior to daily tasks)

Superior ISO Class 5 Air Filtration

ULPA filters (as per IEST-RP-CC001.3 and HEPA (H14) filter (as per EN 1822) with a typical efficiency of > 99.999% at 0.1 to 0.3 microns; provide superior ISO Class 5 air cleanliness as per ISO 14644-1.

Automated pressure hold testing (APHT)

APHT provides a smooth way of quantifying the hourly leak rate of the isolator, thus, ensuring the unit’s integrity against leaks while removing the risk for cross-contamination.

Integrated BioVap™ biodecontamination system with H₂O₂ sensors and catalytic converter.

Integration of the Biovap™ biodecontamination system allows ease of decontaminating the work chambers with just a press of a button in the Esco HMI.
HPI-IS with integrated BioVap™ allows master biodecontamination (only performed with internal doors open).
- Master biodecontamination procedure refers to the possibility to biodecontaminate the entire isolator inner chambers (process chamber and pass-through chambers) with a H₂O₂ mist.

Automated sliding door feature

for closing and opening of the inner pass-through chamber door.

Facilitates ease of isolation control especially during pressure decay testing and biodecontamination process.

Inflatable seal and automated dampers:

for closing and opening of the inner pass-through chamber door.

For an improved and safer isolation control during pressure decay testing and bio-decontamination process.
HPI-IS automated dampers remove the need to manually close/open up the isolator’s dampers every time the unit needs to undergo pressure testing and biodecontamination cycle.

Esco HMI control system

supervises all cabinet operations and monitors cabinet performance in real-time.

Electromagnetic interlocking doors with time delay effect

ensures safety and containment during material transfer.

Principle

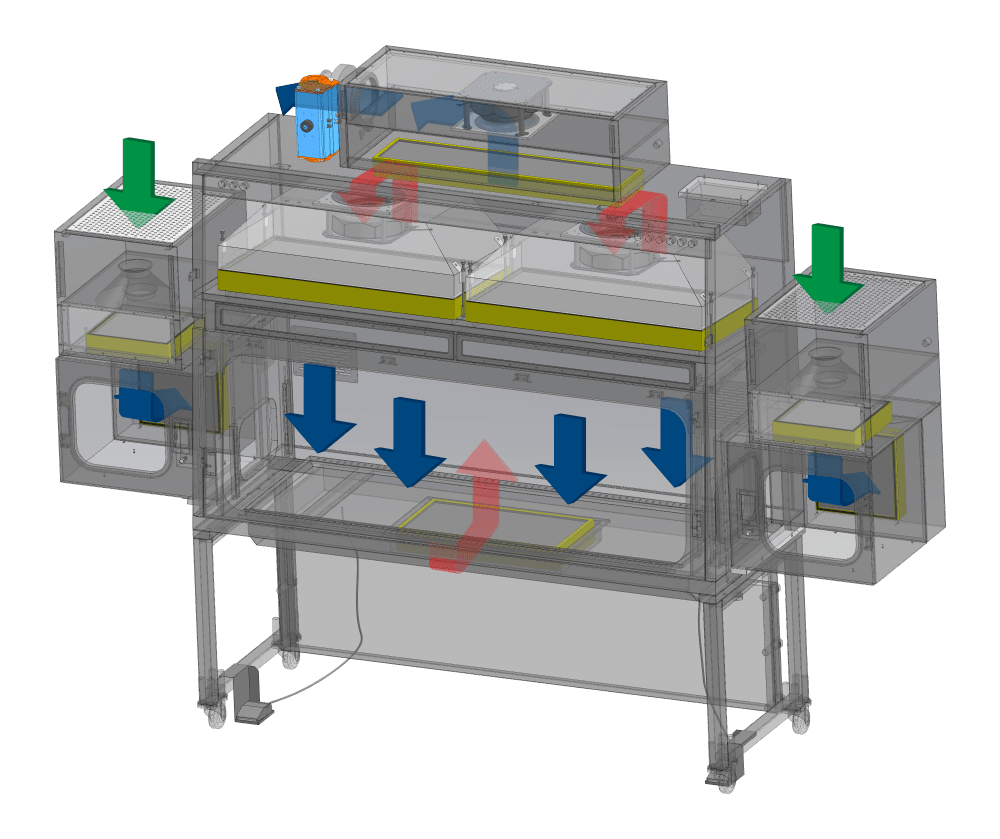

Positive Pressure, Recirculating Model

Ambient air is pulled through the inlet pre-filter and main filter located on top of the isolator. The HEPA (H14) downflow filter creates a laminar air flow providing ISO Class 5 air cleanliness (ISO 14644-1) to the main chamber.
A percentage of the air from the work zone is recirculated back to the chamber. The fan pulls the purged air back to the plenum which again passes through the HEPA (H14) downflow filters, resulting to the air being recirculated back to the work zone and pass-through.
Meanwhile, a percentage of air is pulled towards the perforations at the rear wall inside the work zone, which is then transferred to the pass chamber via the network of HEPA (H14) filters located at its own rear walls. The filtered air is then exhausted out through the top portion of the PTC after passing through another stage of HEPA (H14) filters.
A percentage of purged air is exhausted through the filters to prevent heat build-up inside the isolator. Exhausted air will then be replenished by ambient air coming from the top inlet pre-filter and the main filter.

Negative Pressure, Recirculating Model

Ambient air is pulled through the inlet pre-filter and HEPA (H14) filter located on top of the pass-through chambers of the isolator. The air is then pulled by the fan towards the rear wall of the PTC and goes to the back plenum.
It passes through the HEPA (H14) downflow filter again, resulting to the air being recirculated to the work zone.
The HEPA (H14) downflow filter creates a laminar air flow providing ISO Class 5 air cleanliness (ISO 14644-1) to the main chamber. Exhausted air is then replenished by ambient air coming from the top inlet pre-filter and the main filter.

Models

Isoclean® Healthcare Platform Isolator – Inflatable Seal Model

Isolator Unit

Model

No. of Gloves

Voltage Code

Pressure

Airflow

Pass-through Chamber

Sharps Bin Inside

HPI

Isoclean® Healthcare Platform Isolator

Inflatable Seal

2 Gloves

220-240 VAC, 50/60 Hz

Negative

Single-Pass/ Total Exhaust

No PTC

with Sharps Container inside main chamber

3 Gloves

110-120 VAC, 50/60 Hz

Positive

Recirculating

1 PTC Left

Without Sharps Container

4 Gloves

1 PTC Right

1 PTC Both sides

Accessories

Available in Negative or Positive Pressure model, in Recirculating or Total Exhaust airflow
- Positive pressure is designed for process/product protection.
- Negative pressure is intended for containment purposes where the operator and environmental protection are necessary.
- Recirculating airflow scheme: designed for dealing with non-hazardous and sterile materials.
- Single Pass or Total Exhaust airflow scheme: recommended when handling volatile (hazardous) substances.
Integration of Esco mobile BioVap™ biodecontamination system (H₂O₂ biodecontamination with sensor and catalytic converter)
Integration of a side-mounted 24L CO₂ Incubator
Glove Leak Tester
Glove Leak sizes
- - 300mm
- - 300 x 200 mm
CCTV integration
Height adjustable stand
Access to rear view monitor system
With option for three-way pass through chamber in between 2 units of 2-glove, 3-glove, or 4-glove isolator combination
Other configurations available:
- 2-glove + 2-glove + 2-glove units
- 4-glove + 2-glove units
NEBB Cleanroom Performance Testing for Validation
Optional PQ Support
